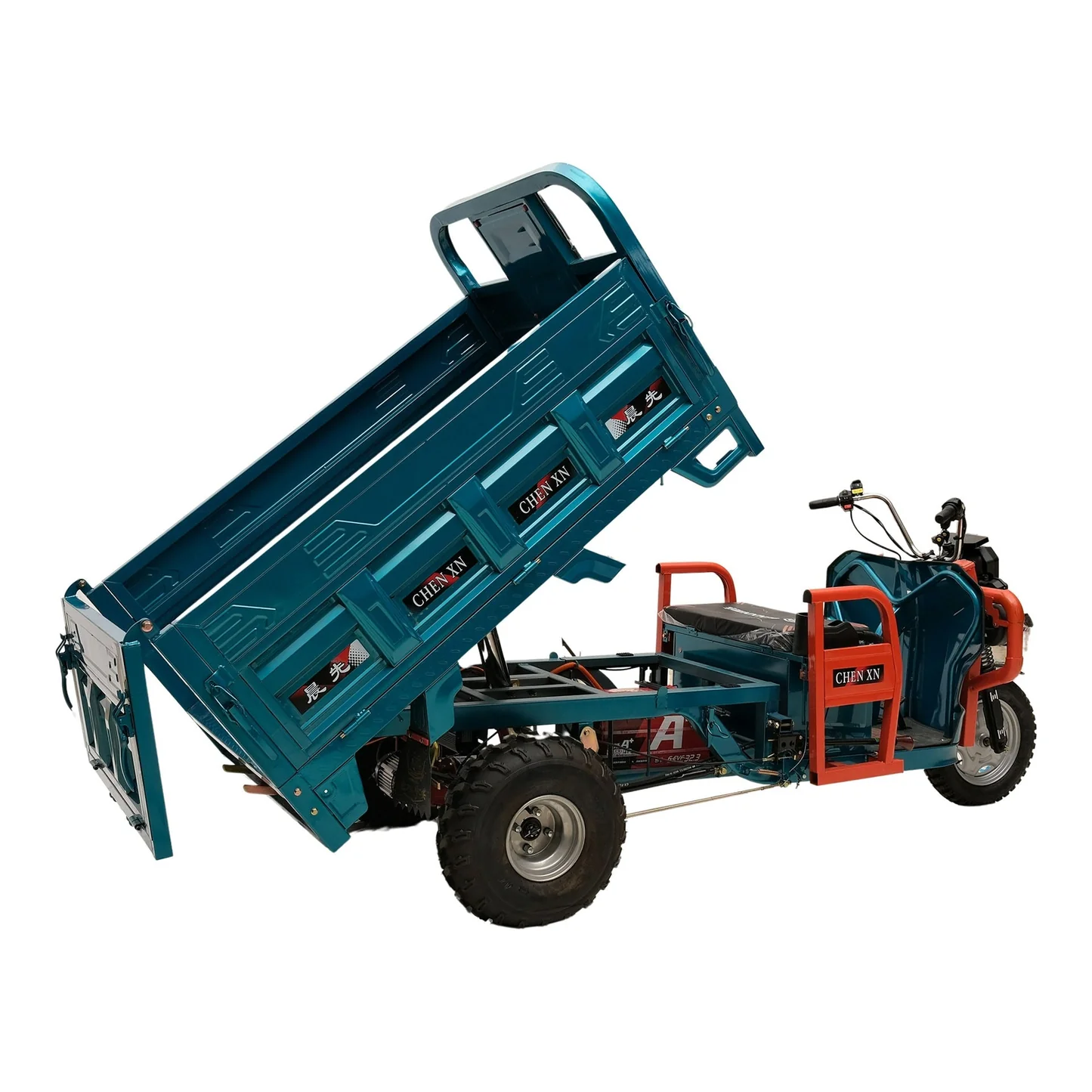

The CHEN XN Electric Dump Cargo Tricycle is a heavy-duty 3-wheel utility vehicle designed for material handling, agricultural transport, and construction site work. Featuring a hydraulic tipping dump bed and a reinforced steel chassis, it simplifies loading and offloading heavy loads with minimal manual effort.
Core Specifications
Motor Power: 1000W – 1500W High-Torque Motor
Battery Configuration: 60V Lead-Acid System
Cargo Bed Dimensions: 1.6 m Length with Hydraulic Self-Dumping mechanism
Max Payload Capacity: 500 kg – 1,000 kg (Heavy Duty Capacity)
Top Speed: 35–40 km/h
Driving Range: 40–60 km per charge
Suspension: Hydraulic front shock absorbers with external spring dampening
Tires: Heavy-duty off-road / steel cord tires (Front 3.75-12, Rear 4.00-12)
Key Features & Utility
Electro-Hydraulic Tipper: Electric powered hydraulic lift cylinder for tipping the rear cargo bed effortlessly.
Reinforced Steel Frame: Heavy-gauge steel construction with orange side-impact protection bars around the driver's seat.
Lighting & Security: Bright LED headlights, auxiliary spot lamps, LCD digital instrument cluster, and an integrated remote anti-theft alarm system.
3-Speed Shifting & Reverse: Electronic 3-speed transmission control with reverse gear for maneuverability in tight spaces.
